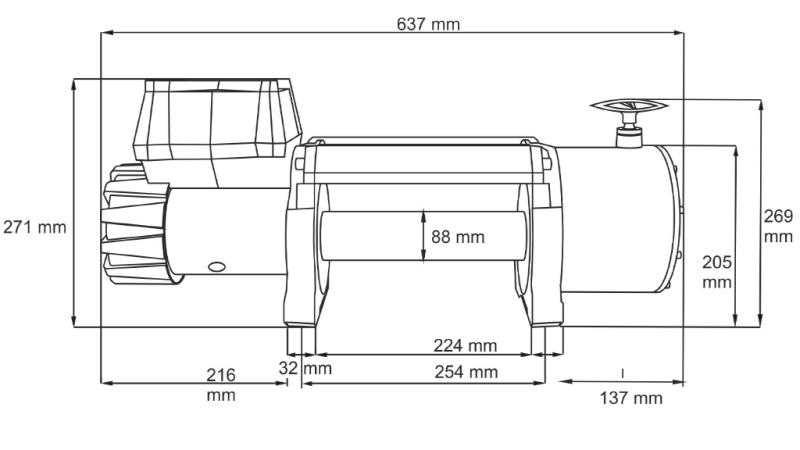

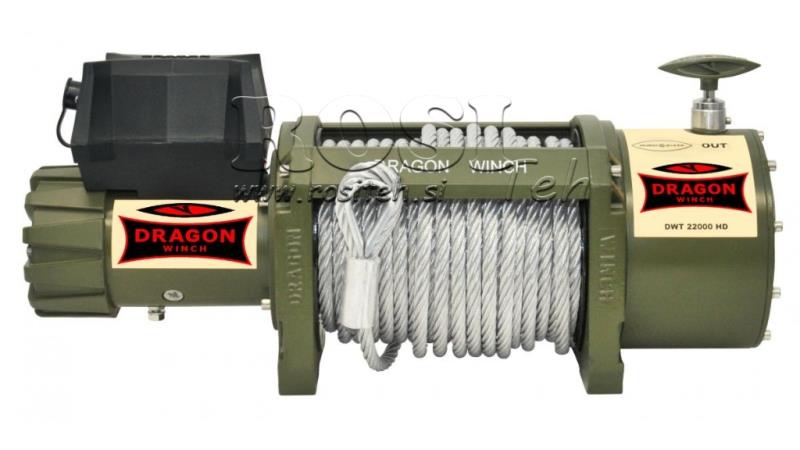

24 V ELECTRIC WINCH DWT 22000 HD - 9979 kg
NOTE: HEAVIER ITEM (postage may change, in which case we will notify you by phone)
Article code:
100160
OEM:
9990000036875
Old price with VAT:
1.142,00 €
Tax rate
22 %
Discont:
20 % ( 228,40 € )
Price without VAT:
936,07 €
DISCOUNT PRODUCTS
913,60 €
Lowest price in 30 days
1.142,00 €
Ref:
0
ROPE WINDING SPEED AND ELECTRICITY CONSUMPTION
| Rope load (kg) | Winding speed (m/min) | Electricity consumption (amp) |
|---|---|---|
| 0 | 4,5 | 42 |
| 2721 | 3,7 | 112 |
| 5443 | 3,0 | 232 |
| 9979 | 1,7 | 350 |
TRACTION DEPENDING ON THE ROPE LAYER ON THE WINDER
| Rope layer | Traction force (kg) | Length of wire on the winder (m) |
|---|---|---|
| 1 | 9979 | 5,1 |
| 2 | 7883 | 11,1 |
| 3 | 6786 | 18,4 |
| 4 | 5887 | 26,5 |
| 5 | 4889 | 31,0 |
Winches Truck 22000 HD is suitable for small and medium off-road vehicles. Also for tow trucks and industrial vehicles. It can pull up to 9979 kg (22000lbs). The design of the winch with a powerful motor and transmission, as well as with a good construction of the winch itself allows it to be used in practically all conditions. Truck 22000 HD winches provide the highest level of reliability and safety.
WHERE CAN YOU FIND A WIRELESS WINCH CONTROLLER?
supplier:
Poland
brake:
dynamic
power supply:
electricity (accumulator)
voltage:
24V
power transmission system:
3-level planetary gear
steering:
wired and wireless controller
dimension between holes for installation:
254mm x 114mm / 254mm x 164mm
dimensions (l/w/h):
637mm x 217mm x 271mm
return or exchange:
14 days

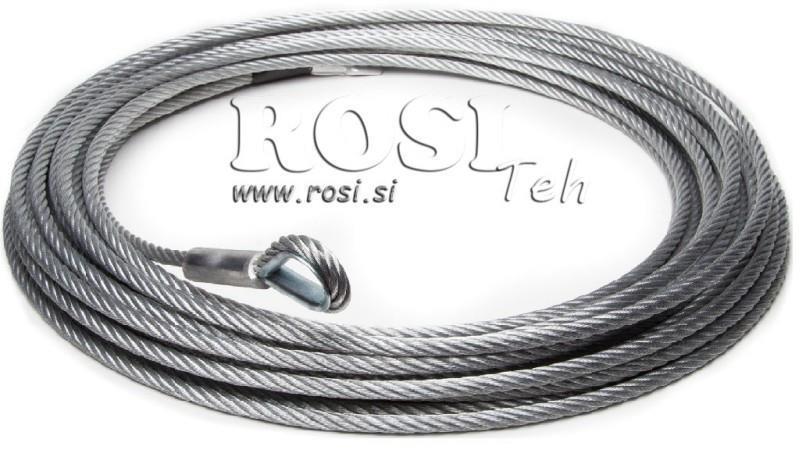

length of wire rope:
31 m, thickness 12 mm
traction efficiency:
9979 kg
warranty:
6 months
guide of wire rope:
4 rollers
