-20%

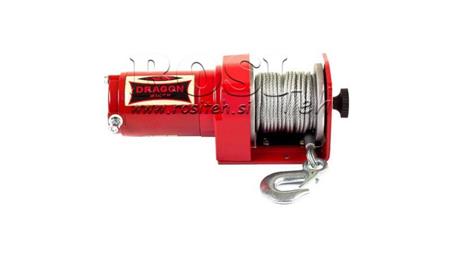

12 V ELECTRIC WINCH DWM 2000 ST - 907 kg
Article code:
13663
OEM:
9990000100224
Old price with VAT:
105,00 €
Tax rate
22 %
Discont:
20 % ( 21,00 € )
Price without VAT:
86,07 €
DISCOUNT PRODUCTS
84,00 €
Lowest price in 30 days
105,00 €
Ref:
8
ROPE WINDING SPEED AND ELECTRICITY CONSUMPTION
| Rope load(kg) | Winding speed (m/min) | Electricity consumption (amp) |
|---|---|---|
| 0 | 3,5 | 11 |
| 453 | 2,4 | 53 |
| 907 | 1 | 95 |
TRACTION DEPENDING ON THE ROPE LAYER ON THE WINDER
| Rope layer | Traction force (kg) | Length of wire on a winder (m) |
|---|---|---|
| 1 | 907 | 1,8 |
| 2 | 716 | 3,8 |
| 3 | 617 | 6,2 |
| 4 | 535 | 8,9 |
| 5 | 444 | 10 |
Winch Maverick 2000 ST is suitable for small and medium-sized ATVs and UTVs. It can pull up to 907kg (2000lbs). The design of the winch with a powerful motor and transmission, as well as with a good construction of the winch itself allows it to be used in practically all conditions. The Maverick 2000 ST winches provide the highest level of reliability and safety.
supplier:
Poland
brake:
automatic
power:
0,9 HP
power supply:
electricity (accumulator)
voltage:
12V
product weight:
5,8 kg

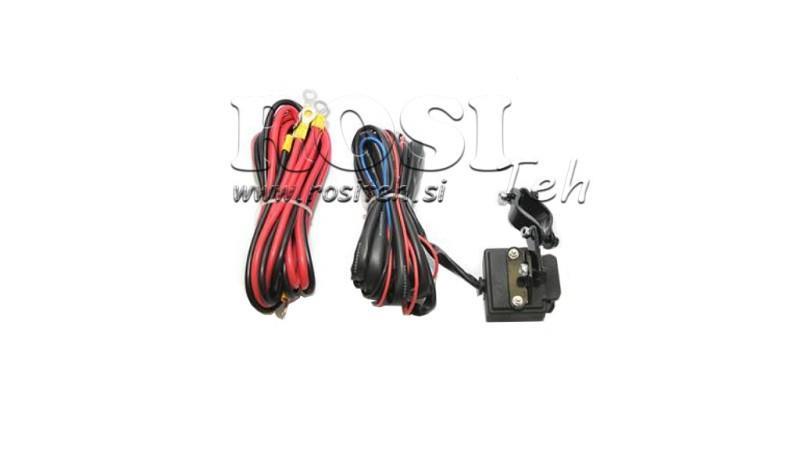

steering:
wired controller

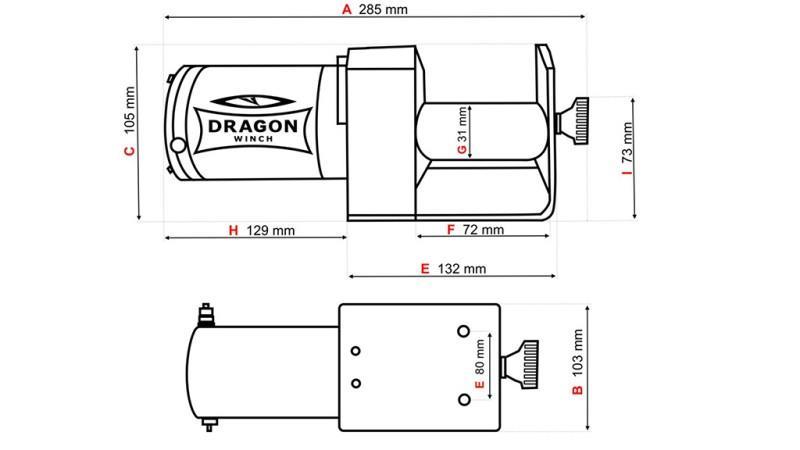

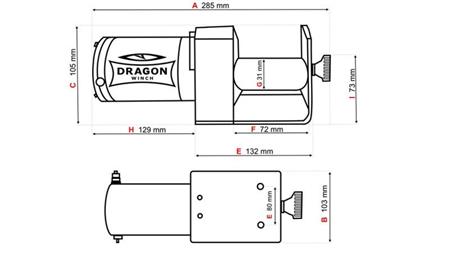

dimensions (l/w/h):
285mm x 103mm x 105mm
return or exchange:
14 days
length of wire rope:
10 m, thickness 3,5 mm
traction efficiency:
907 kg
warranty:
6 months
