THREADED HOOK CAT.2 FOR TOP LINK M27X3 LEFT THREAD
Article code:
11571
OEM:
9990000021505
Tax rate
22 %
Price without VAT:
11,48 EUR
Price with VAT:
14,00 EUR
Ref:
9
| Technical specifications | |
| Dimension of the hole for the bolt: | 25.4 mm |
| Supplier: | Italy |
| Return or exchange: | 14 days |
| Product weight: | 1.44 kg |
| Warranty: | 6 months |
| Thread: | Left |
| Material: | 35CrMo4 UNI 5332 |
| Protection: | galvanized |
Description
The threaded hook for a top link is designed for connecting tractors with agricultural implements in a three-point linkage system. It is used as a component of adjustable top links, allowing easy adjustment of the length and position of the implement according to working requirements.
It is made of high-quality high-strength steel, ensuring reliable operation even under higher loads. The galvanized surface protection provides good resistance against corrosion and wear, ensuring a long service life even in demanding working conditions.

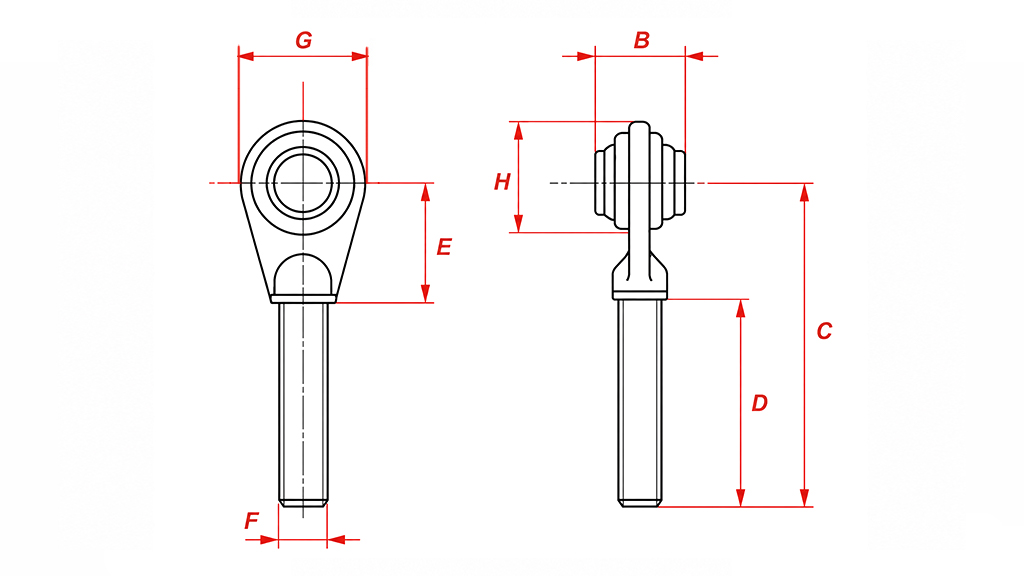

| CODE | CATEGORY | THREAD | THREAD DIRECTION | H (PIN) | B | C | D | E | G |
| 10862 | CAT 1 | 27x3 | Right | 19,2 | 44 | 205 | 145 | 50 | 62 |
| 11567 | CAT 1 | 27x3 | Left | 19,2 | 44 | 205 | 145 | 50 | 62 |
| 11568 | CAT 1 | 30x3 | Right | 19,2 | 44 | 225 | 170 | 50 | 62 |
| 11569 | CAT 1 | 30x3 | Left | 19,2 | 44 | 225 | 170 | 50 | 62 |
| 11570 | CAT 2 | 27x3 | Right | 25,4 | 51 | 220 | 165 | 55 | 75 |
| 11571 | CAT 2 | 27x3 | Left | 25,4 | 51 | 220 | 165 | 55 | 75 |
| 11572 | CAT 2 | 30x3 | Right | 25,4 | 51 | 220 | 165 | 55 | 75 |
| 11573 | CAT 2 | 30x3 | Left | 25,4 | 51 | 220 | 165 | 55 | 75 |
| 11574 | CAT 2 | 36x3 | Right | 25,4 | 51 | 220 | 155 | 55 | 78 |
| 11575 | CAT 2 | 36x3 | Left | 25,4 | 51 | 220 | 155 | 55 | 78 |
| 11576 | CAT 3 | 36x3 | Right | 32,4 | 51 | 260 | 195 | 70 | 96 |
| 11577 | CAT 3 | 36x3 | Left | 32,4 | 51 | 260 | 195 | 70 | 96 |
dimension of the hole for the bolt:
25.4 mm
Supplier:
Italy
Return or exchange:
14 days
Product weight:
1.44 kg
Warranty:
6 months
Thread:
left
Material:
35CrMo4 UNI 5332
protection:
galvanized
