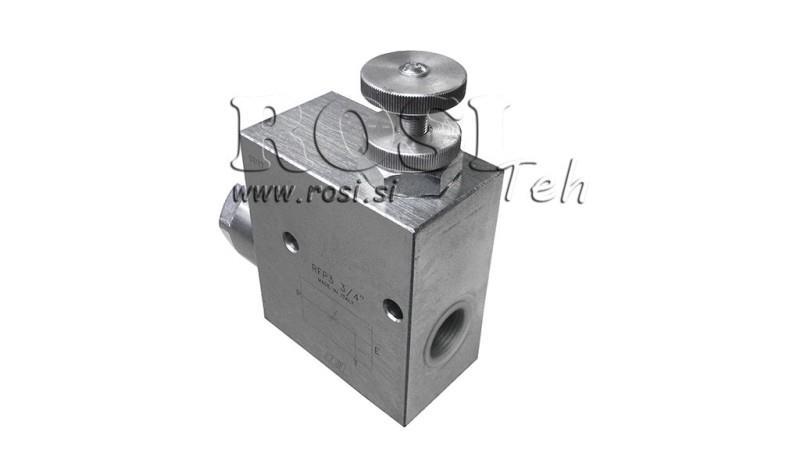

PRIORITY VALVE RFP3 3/4 open tank
Article code:
12477
OEM:
9990000071845
Tax rate
22 %
Price without VAT:
145,90 €
Price with VAT:
178,00 €
Ref:
15
Use:
The valve acts as a priority valve. It allows a flow "P", constant with respect to the desired setting, independent of the inlet pressure. Excess flow and pressure are drained directly into the tank.
Connection:

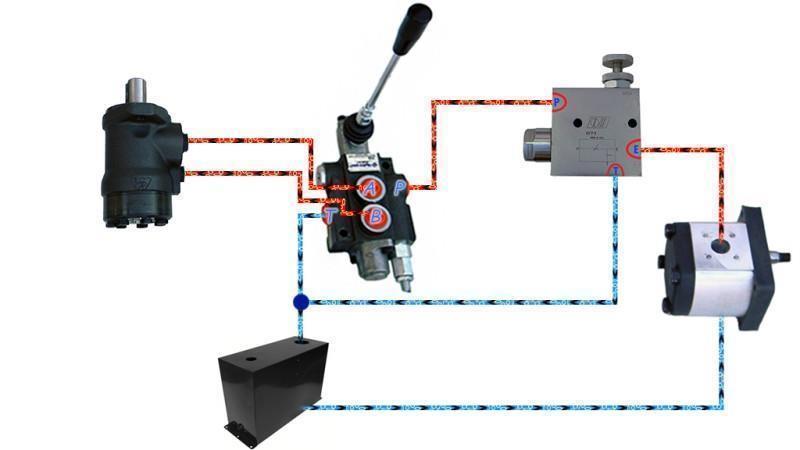

Connect "E" to the pressure side and "P" to the actuator or to the hydraulic line where control is required. Connect the "T" to the tank. To adjust the inlet pressure in "P", screw / unscrew the regulator.
Material:
Housing: hardened steel, galvanized
Seals: BUNA N standard
supplier:
Italia
product weight:
3,4 kg
max. flow:
120 l/min
maximum pressure:
350 bar
return or exchange:
14 days
warranty:
6 months
max. adjustable flow:
100 l/min
