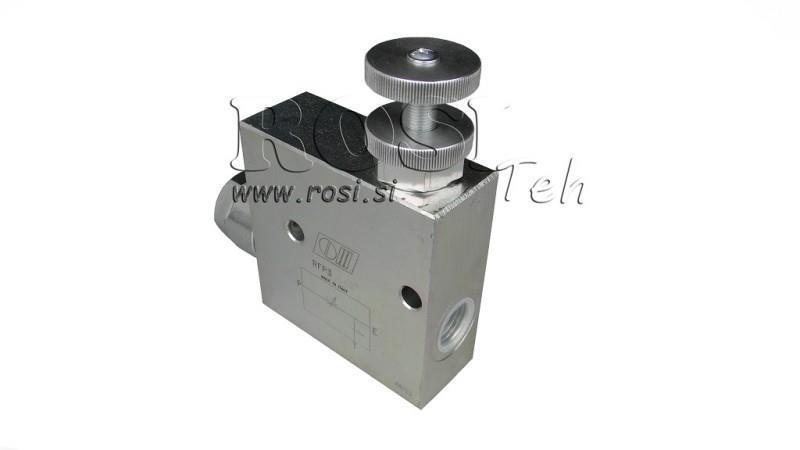

PRIORITY VALVE RFP3 1/2" OPEN TANK
Article code:
11304
OEM:
9990000017690
Tax rate
22 %
Price without VAT:
73,77 EUR
Price with VAT:
90,00 EUR
Ref:
27
Usage:
The valve acts as a priority valve. It allows flow 'P', constant according to the desired setting, independent of the input pressure. Excess flow and pressure are drained directly into the tank.
Connection:
Connect 'E' to the pressure side and 'P' to the actuator or to the hydraulic line where regulation is needed. Connect 'T' to the tank. To regulate the input pressure in 'P', screw/unscrew the regulator.
Material:
Housing: hard material, galvanized
Seal: BUNA N standard
Supplier:
Italy
Return or exchange:
14 days
Product weight:
2.1 kg
Warranty:
6 months
max. adjustable flow:
60 l/min
Max. flow:
80 l/min
max. pressure:
350 bar
