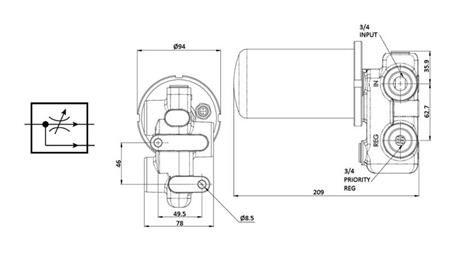

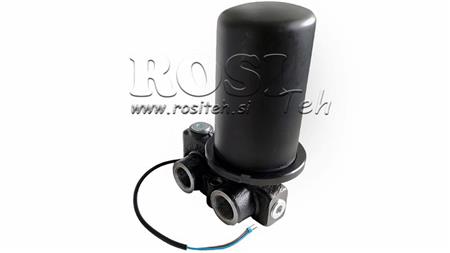

HYDRAULIC VALVE 3/4'' 120Llit 420 BAR - FOR FLOW REGULATION 0,5-60lit/min
Article code:
13161
OEM:
9990000088188
Tax rate
22 %
Price without VAT:
549,18 €
Price with VAT:
670,00 €
Ref:
3
Description:
Proportional flow control valve with compensated flow. Proportional valves allow continuous or. proportional flow control through the valve depending on the magnitude of the current or voltage at the valve coil.
supplier:
Germany
connectors:
3/4"
product weight:
2,75 kg
max. flow:
120 l/min
max. pressure:
420 bar
el. voltage:
12V
return or exchange:
14 days
warranty:
6 months
IP protection:
IP66
max. adjustable flow:
0,5 - 60 l/min
