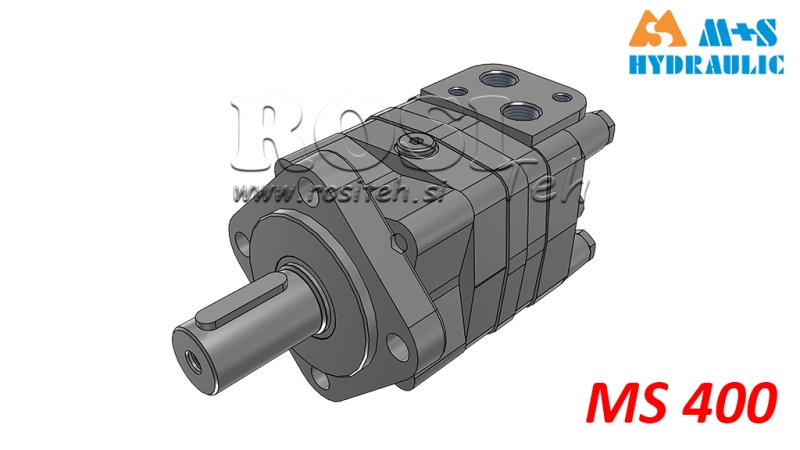

HYDRAULIC MOTOR MS 400
| Technical data | |
| Supplier: | Bulgaria |
| Return or exchange: | 14 days |
| Warranty: | 6 months |
| Shaft diameter: | 32 mm |
| Oil flow: | constant flow 75 L/min, intermittent 90 L/min |
| Connection thread: | 1/2" |
| Temperature range: | from -40°C to 140 °C |
| Torque: | constant torque 86,5 daNm, intermittent 99 daNm |
| Revolutions: | constant revolutions 190 rpm, intermittent 230 rpm |
| Pressure drop: | constant pressure 160 bar, intermittent 190 bar, max. 210 bar |
| Inlet pressure: | constant pressure 230 bar, intermittent 295 bar, max. 300 bar |
| Power: | constant power 11 kW, intermittent 12,5 kW |
| cm³/revolution: | 397 |
| Weight: | 13,1 kg |
DESCRIPTION – HYDRAULIC MOTORS MS
Hydraulic motors type MS are robust, compact, and efficient hydraulic motors of orbital construction. They are suitable for a wide range of demanding applications. Thanks to their simple construction, high-quality materials, and long service life, they provide an optimal balance between performance and reliability.
Advantages of hydraulic motors MS:
- high torque at low speeds,
- smooth and quiet operation,
- long life span due to high-quality seals and bearings,
- designed for operation under high pressure,
- wide selection.
Applications:
- agricultural machinery,
- forestry machines,
- construction equipment,
- transport technology,
- industrial machines and devices.
Hydraulic motors MS are the right choice wherever you need a reliable conversion of hydraulic energy into mechanical motion.

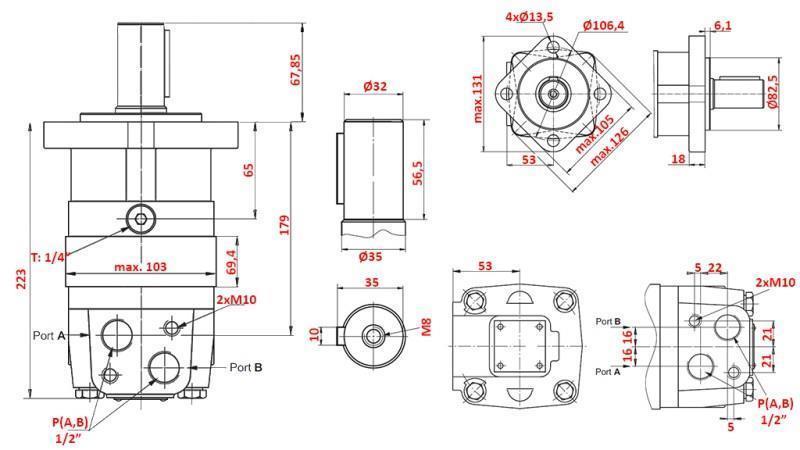

| L | L1 | L2 | |
| (mm) | |||
| MS 80 | 168 | 14 | 124 |
| MS 100 | 171 | 17,4 | 128 |
| MS 125 | 176 | 21,8 | 132 |
| MS 160 | 182 | 27,8 | 138 |
| MS 200 | 189 | 34,8 | 145 |
| MS 250 | 197 | 43,5 | 154 |
| MS 315 | 209 | 54,8 | 165 |
| MS 400 | 223 | 69,4 | 179 |
