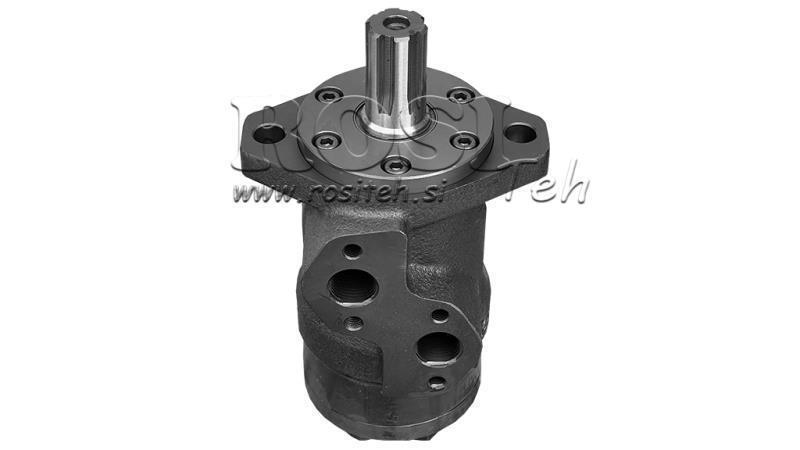

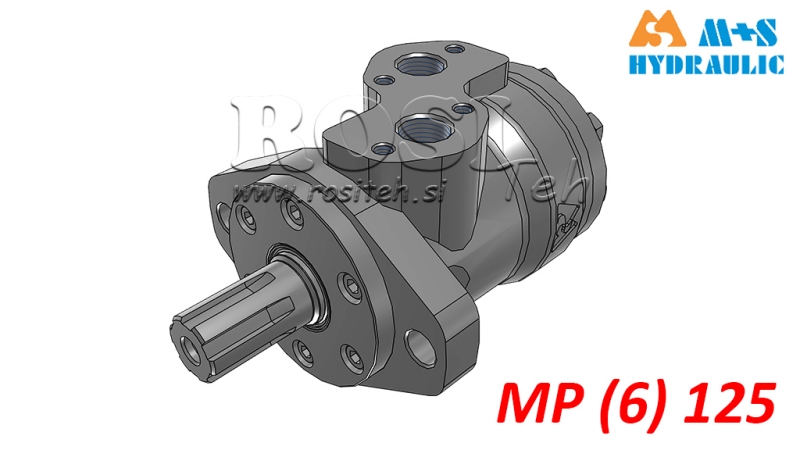

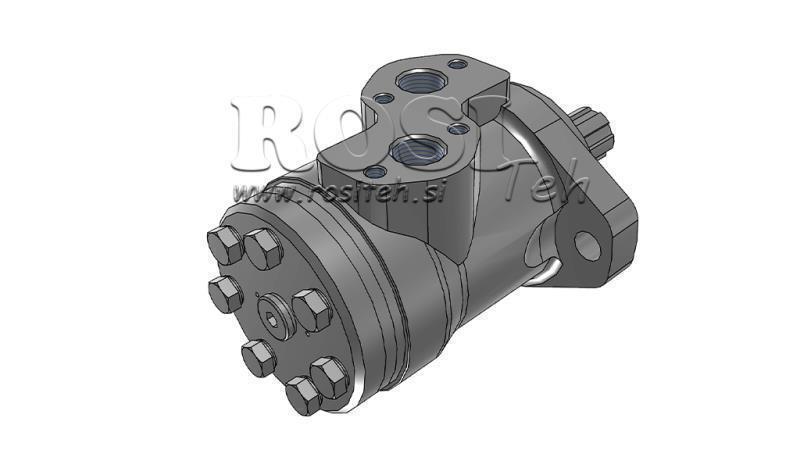

    HYDRAULIC MOTOR MP 125 CC - 6 TEETH
    HYDRAULIC MOTOR MP 125 CC - 6 TEETH
    HYDRAULIC MOTOR MP 125 CC - 6 TEETH
    HYDRAULIC MOTOR MP 125 CC - 6 TEETH

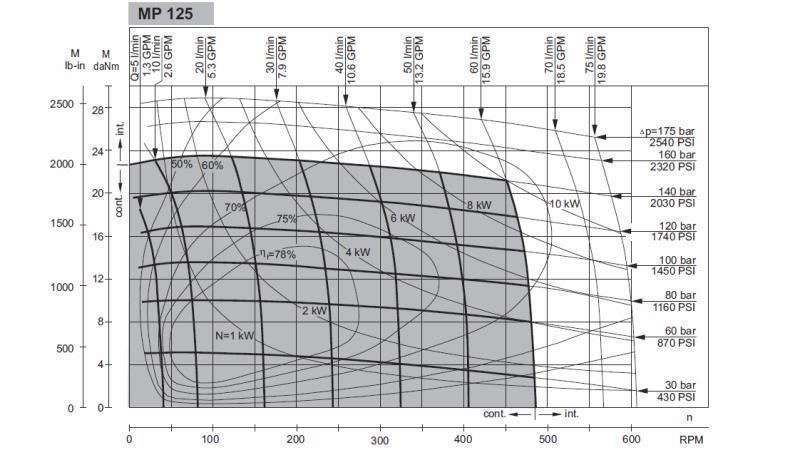

    HYDRAULIC MOTOR MP 125 cc - 6 TEETH - FUNCTIONAL DIAGRAM
    HYDRAULIC MOTOR MP 125 CC - 6 TEETH
    HYDRAULIC MOTOR MP 125 CC - 6 TEETH
    HYDRAULIC MOTOR MP 125 CC - 6 TEETH
    HYDRAULIC MOTOR MP 125 CC - 6 TEETH
    HYDRAULIC MOTOR MP 125 cc - 6 TEETH - FUNCTIONAL DIAGRAM

    HYDRAULIC MOTOR MP 125 CC - 6 TEETH

    Article code:
    11947
    OEM:
    9990000037643
    Tax rate
    22 %
    Price without VAT:
    176,23 EUR
    Price with VAT:
    215,00 EUR
    Ref:
    0
    ADD TO CART
    Technical data
    Supplier:Bulgaria
    Return or exchange:14 days
    Warranty:6 months
    Weight:6,2 kg
    Temperature range:

    from -40°C to 140 °C

    cm³/revolution:123,8
    Revolutions:

    constant revolutions 489 rpm, intermittent 605 rpm

    Power:

    constant power 10,2 kW, intermittent 12 kW

    Torque:

    constant torque 23,7 daNm, intermittent 29,8 daNm, max. 36,5 daNm

    Inlet pressure:

    constant pressure 175 bar, intermittent 200 bar, max. 225 bar

    Pressure drop:

    constant pressure 140 bar, intermittent 175 bar, max. 225 bar

    Oil flow:

    constant flow 60 L/min, intermittent 75 L/min

    Shaft diameter:BS 2059 (SAE 6B) - 25,3 mm
    Connection thread:1/2"



    Description



    Hydraulic motors MP are reliable and compact, designed for use in various hydraulic systems where high efficiency and long service life are required. They are characterized by robust construction, precise manufacturing, and excellent resistance to heavy loads. The six-tooth shaft ensures excellent grip and power transmission.



    They are suitable for use in agricultural, forestry, and industrial machinery, providing reliable power transmission and consistent torque at different rotation speeds.



    Main advantages of hydraulic motors MP:



    - high efficiency and precise operation

    - robust construction and long service life

    - suitable for demanding working conditions

    - wide range of sizes



    Applications: hydraulic winches, wood splitters, conveyor belts, and as a drive for agricultural and forestry attachments.

      L L1
      (mm)
    MP (6) 50 135,5 6,67
    MP (6) 80 139,5 10,67
    MP (6) 100 142 13,33
    MP (6) 125 145,5 16,67
    MP (6) 160 150 21,33
    MP (6) 200 155,5 26,67
    MP (6) 250 162 33,33





    Supplier:
    Turkey
    Oil flow:
    constant 60 L/min, max. 75 L/min
    Return or exchange:
    14 days
    torque:
    constant 23.7 Nm, with interruptions 29.8 Nm, max. 36.5 Nm
    cm/revolutions:
    123.8
    connection thread:
    1/2"
    Revolutions:
    constant 486 rpm, with interruptions 605 rpm
    Product weight:
    6.2 kg
    Warranty:
    6 months
    pressure:
    constant 140 bar, with interruptions 175 bar, max. 225 bar
    power:
    constant 10.2 kW, max. 12 kW
