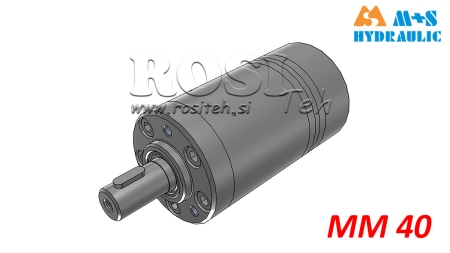

HYDRAULIC MOTOR MM 40
| Technical data | |
| Supplier: | Bulgaria |
| Return or exchange: | 14 days |
| Warranty: | 6 months |
| Weight: | 2,3 kg |
| Temperature range: | from -40°C to 140 °C |
| cm³/revolution: | 39,8 |
| Revolutions: | constant revolutions 500 rpm, intermittent 630 rpm |
| Power: | constant power 2,2 kW, intermittent 3,2 kW |
| Torque: | constant torque 4,5 daNm, intermittent 7 daNm, max. 8,2 daNm |
| Inlet pressure: | constant pressure 140 bar, intermittent 175 bar, max. 225 bar |
| Pressure drop: | constant pressure 90 bar, intermittent 140 bar, max. 160 bar |
| Oil flow: | constant flow 20 L/min, intermittent 25 L/min |
| Shaft diameter: | 16 mm |
| Connection thread: | 3/8" |
DESCRIPTION – HYDRAULIC MOTORS MM
Hydraulic motors MM are compact and reliable units designed for wide use in agriculture, industry, and forestry. A robust construction, small installation dimensions, and long service life characterize them. They are suitable for driving various working machines and attachments where precision and efficiency are required.
Main advantages:
- compact design and easy installation,
- high torque at low speeds,
- constant power and reliable operation,
- long life span and low maintenance costs.
Areas of application:
- agricultural machinery and tractor attachments,
- forestry equipment,
- construction machinery,
- industrial transport systems, lifts, and winches.
Various models are available (MM 8, MM 12,5, MM 20, MM 32, MM 40, MM 50), differing in speed, torque, power, and oil flow, allowing you to choose the hydraulic motor that best suits your needs and working conditions.

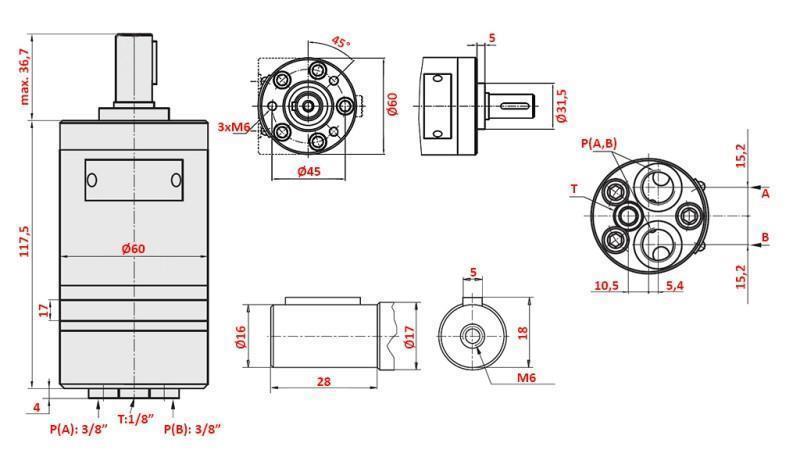

| L | L1 | |
| (mm) | ||
| MM 8 | 105 | 3,5 |
| MM 12,5 | 107 | 5,5 |
| MM 20 | 110 | 8,5 |
| MM 32 | 115 | 13,5 |
| MM 40 | 118,5 | 17 |
| MM 50 | 122,5 | 21 |
