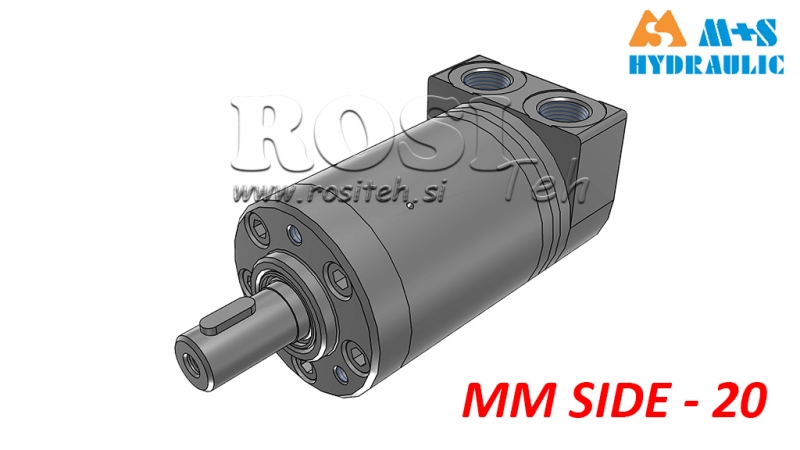

HYDRAULIC MOTOR MM 20 -SIDE
| Technical data | |
| Supplier: | Bulgaria |
| Return or exchange: | 14 days |
| Warranty: | 6 months |
| Weight: | 2,1 kg |
| Temperature range: | from -40°C to 140 °C |
| cm³/revolution: | 19,9 |
| Revolutions: | constant revolutions 1000 rpm, intermittent 1250 rpm |
| Power: | constant power 2,4 kW, intermittent 3,2 kW |
| Torque: | constant torque 2,5 daNm, intermittent 3,5 daNm, max. 5,1 daNm |
| Inlet pressure: | constant pressure 140 bar, intermittent 175 bar, max. 225 bar |
| Pressure drop: | constant pressure 100 bar, intermittent 140 bar, max. 200 bar |
| Oil flow: | constant flow 20 L/min, intermittent 25 L/min |
| Shaft diameter: | 16 mm |
| Connection thread: | 3/8" |
DESCRIPTION – HYDRAULIC MOTORS MM SIDE
The hydraulic motors MM SIDE (with side ports) are specifically designed for applications where installation space is limited or where it is more practical to have hydraulic connections positioned on the side. Thanks to their compact and robust construction, they are easy to install even in tight spaces while ensuring reliable performance and a long service life.
Main advantages:
- hydraulic connections positioned on the side for easier installation,
- compact design and simple mounting,
- high torque at low speeds,
- constant power and reliable operation,
- long service life and low maintenance costs.
Applications:
- agricultural machinery and tractor attachments,
- forestry equipment,
- construction machinery,
- industrial transport systems, lifts, and winches,
- anywhere where installation space is limited.
Various models are available (MM SIDE 8, MM SIDE 12,5, MM SIDE 20, MM SIDE 32, MM SIDE 40, MM SIDE 50), differing in speed, torque, power, and oil flow — allowing you to select the hydraulic motor that best suits your needs and working conditions.

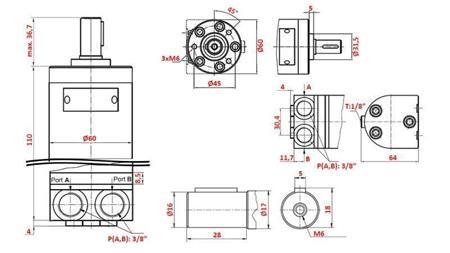

| L | L1 | |
| (mm) | ||
| MM SIDE 8 | 106,4 | 3,5 |
| MM SIDE 12,5 | 108,4 | 5,5 |
| MM SIDE 20 | 111,4 | 8,5 |
| MM SIDE 32 | 116,4 | 13,5 |
| MM SIDE 40 | 119,9 | 17 |
| MM SIDE 50 | 123,9 | 21 |
