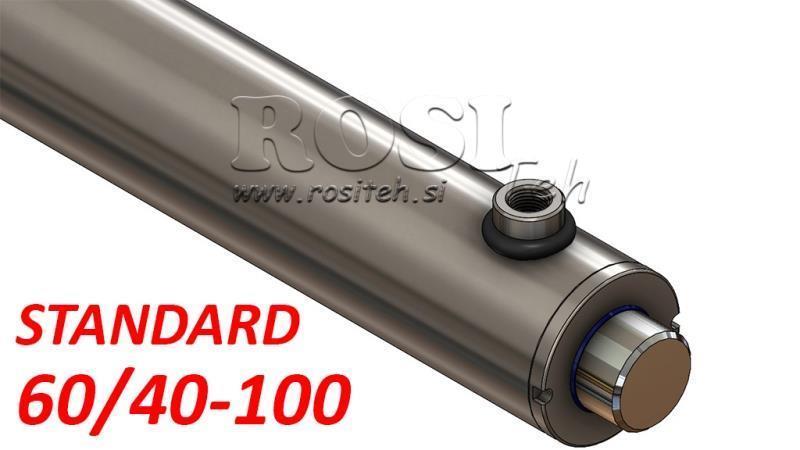

HYDRAULIC CYLINDER STANDARD 60/40-100
| Technical information | |
| Supplier: | Italy |
| Returns or exchange: | 14 days |
| Warranty: | 2 years |
| Cylinder extension force (at 180 bar): | 5,09 ton |
| Cylinder extension force (at 250 bar): | 7,07 ton |
| Cylinder retraction force (at 180 bar): | 2,83 ton |
| Cylinder retraction force (at 250 bar): | 3,93 ton |
| Maximum speed: | 0,5 m/s |
| Maximum pressure: | 250 bar |
| Weight: | 5,5 kg |
| Inner diameter of the cylinder piston: | 60 mm |
| Cylinder piston rod diameter: | 40 mm |
| Stroke of the cylinder: | 100 mm |
DIMENSIONS
| STANDARD | E | D (stroke) | |
| Code | [mm] | ||
| 10591 | 60/40-100 | 260 | 100 |
| 10592 | 60/40-150 | 310 | 150 |
| 10299 | 60/40-200 | 360 | 200 |
| 10593 | 60/40-250 | 410 | 250 |
| 10300 | 60/40-300 | 460 | 300 |
| 10594 | 60/40-350 | 510 | 350 |
| 10301 | 60/40-400 | 560 | 400 |
| 10595 | 60/40-450 | 610 | 450 |
| 10302 | 60/40-500 | 660 | 500 |
| 14146 | 60/40-550 | 710 | 550 |
| 10303 | 60/40-600 | 760 | 600 |
| 10596 | 60/40-700 | 860 | 700 |
| 10597 | 60/40-800 | 960 | 800 |
| 10598 | 60/40-900 | 1060 | 900 |
| 10599 | 60/40-1000 | 1160 | 1000 |
HYDRAULIC CYLINDERS
Hydraulic cylinders convert hydraulic energy into linear force and, consequently, movement. They operate based on Pascal's law principle and utilize the force generated by the pressure of a closed fluid, such as oil. When hydraulic fluid is pumped to one side of the cylinder, it pushes the piston, creating linear movement in the desired direction.
Common double-acting hydraulic cylinders ('differential cylinders') have two ports (for hydraulic hoses), allowing linear movement in both directions.
 |
 |
Due to the different surface area ratios of the pressed oil on one side or the other of the cylinder, the cylinder also has different power when extending or retracting. Consequently, due to the different oil volumes on one side or the other of the cylinder, the speed of the cylinder (piston) is also different (faster or slower). When 'extending' the cylinder, the oil acts on the entire surface of the piston, which is why the cylinder performs greater force and moves more slowly in this case, whereas during 'retracting', where the surface is smaller by the diameter of the piston rod, the cylinder overcomes less force, allowing it to move faster.
Applications of hydraulic cylinders:
Hydraulic cylinders are useful wherever there is a need for greater power. In agriculture, hydraulic cylinders are used for tractors (lifting arms of three-point linkages, top links, hydraulic steering, loaders, FRONT HYDRAULICS, etc.), combines, loaders, etc. They are equally widely used on various tractor attachments, such as spider, loader, tipper trailer, log splitter, flap on slurry tanks, harrows, movement of tillers and mulchers, silage grabbers, turning plows for soil, snow plows, forestry winches, etc.
Hydraulic cylinders are also very commonly used in forestry, machinery construction, construction, shipbuilding, energy, the food industry, and the automotive industry.
Hydraulic cylinders are available in various dimensions and with diverse mountings to meet different needs.
