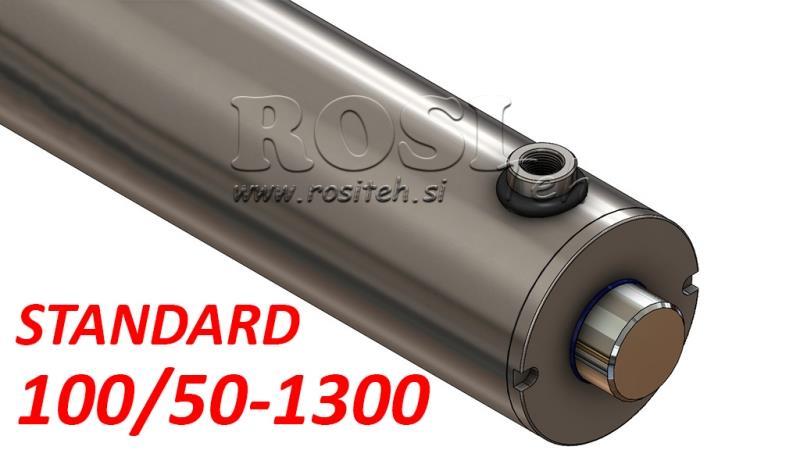

HYDRAULIC CYLINDER STANDARD 100/50-1300
HYDRAULIC CYLINDER STANDARD 100/50-1300
HYDRAULIC CYLINDER STANDARD 100/50-1300
HYDRAULIC CYLINDER STANDARD 100/50-1300
HYDRAULIC CYLINDER STANDARD 100/50-1300
HYDRAULIC CYLINDER STANDARD 100/50-1300

HYDRAULIC CYLINDER STANDARD 100/50-1300

Article code:
12153
OEM:
9990000065332
Tax rate
22 %
Price without VAT:
321,31 €
Price with VAT:
392,00 €
Ref:
2
ADD TO CART

DIMENSIONS

STANDARD

E

D (stroke)

[mm]

100/50-100

286

100

100/50-150

336

150

100/50-200

386

200

100/50-250

436

250

100/50-300

486

300

100/50-350

536

350

100/50-400

586

400

100/50-450

636

450

100/50-500

686

500

100/50-550

736

550

100/50-600

786

600

100/50-700

886

700

100/50-800

986

800

100/50-900

1086

900

100/50-1000

1186

1000

100/50-1100

1286

1100

100/50-1200

1386

1200

100/50-1300

1486

1300

100/50-1400

1586

1400

100/50-1500

1686

1500



HYDRAULIC CYLINDERS



A hydraulic cylinder converts hydraulic energy into linear force, which results in movement. Based on the principle of Pascal's law, the force created by the pressure of a closed liquid (oil) is used to create a movement. When hydraulic fluid is pumped to one side of the cylinder, it pushes the piston and creates a linear movement in the desired direction.

A conventional two-way hydraulic cylinder ("a differential cylinder") has two connections (for the hydraulic hose), allowing linear movement in both directions.


Due to the different ratios of the surface of the pressed oil on one or the other side of the cylinder, it provides different strengths when stretching or shrinking. As a result, the cylinder's (piston's) speed is also different (faster or slower). When "stretching", the oil acts on the entire surface of the piston. As a result, the hydraulic cylinder can exert a higher force, but it moves slower. The opposite, when "shrinking", where the surface is smaller by the diameter of the piston, the cylinder provides a smaller force, but this means it can move faster.



Use of hydraulic cylinders:


Hydraulic cylinders are useful wherever more power is needed. In agriculture, hydraulic cylinders are used for tractors - lifting arms of three-point hydraulics, top links, hydraulic steering wheels, loaders, tractor front hydraulics, etc. Hydraulic cylinders are also widely used on various tractor attachments, such as loaders, tipper trailers, wood splitters, movement mulchers, soil turning plows, snow plows, forestry winches etc.



Moreover, hydraulic cylinders are also very common in forestry, mechanical engineering, construction, shipbuilding, the energy-supply industry, the food industry, and the automotive industry.





There are several types of hydraulic cylinders (different attachments):



Hydraulic cylinders are available in various dimensions and with different mountings to suit a variety of your needs.





Hydraulic cylinders
"STANDARD"





Hydraulic cylinders
"HOLE"





Hydraulic cylinders
"POINT"





Hydraulic cylinders
"FORK"





Hydraulic cylinders
"FLANGE"


supplier:
Italia
cylinder shrinkage force (at 180 bar):
10,60 tons
cylinder shrinkage force (at 250 bar):
14,72 tons
cylinder stretching force (at 180 bar):
14,13 tons
cylinder stretching force (at 250 bar):
19,63 tons
maximum pressure:
250 bar
return or exchange:
14 days
warranty:
2 years
maximum velocity:
0,5 m/s
