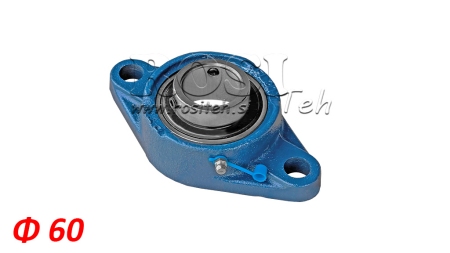

BEARING IN UCFL HOUSING 212 - fi 60mm
| Type | Φ | a | e | b | l | g | i | S | Bi | Z |
| mm | ||||||||||
| UCFL 204 | 20 | 113 | 90 | 60 | 25.5 | 12 | 15 | 12 | 31 | 33.3 |
| UCFL 205 | 25 | 130 | 99 | 68 | 27 | 15 | 16 | 16 | 34.1 | 35.8 |
| UCFL 206 | 30 | 148 | 117 | 80 | 31 | 14 | 18 | 16 | 38.1 | 40.2 |
| UCFL 207 | 35 | 161 | 130 | 90 | 34 | 16 | 19 | 16 | 42.9 | 44.4 |
| UCFL 208 | 40 | 175 | 144 | 100 | 36 | 16 | 21 | 16 | 49.2 | 51.2 |
| UCFL 209 | 45 | 188 | 148 | 108 | 38 | 18 | 22 | 19 | 49.2 | 52.2 |
| UCFL 210 | 50 | 197 | 157 | 115 | 40 | 18 | 22 | 19 | 51.6 | 54.6 |
| UCFL 211 | 55 | 224 | 184 | 130 | 43 | 20 | 25 | 19 | 55.6 | 58.4 |
| UCFL 212 | 60 | 250 | 202 | 140 | 48 | 20 | 29 | 23 | 65.1 | 68.7 |
Bearing in UCFL Housing
Bearings in UCFL type housing consist of ball bearings with an inner ring, mounted in an elongated, two-part housing made of gray cast iron. The housing has two mounting holes, allowing for compact attachment to flat surfaces where there is no space for larger bearing units.
UCFL bearings allow for slight self-alignment, simplifying installation and ensuring reliable operation even with minor misalignments. In most cases, they are equipped with a lubrication opening that allows for regular maintenance. The fixation of the bearing on the shaft is done using a screw fastening on the inner ring.
General Characteristics:
- Type: UCFL.
- Housing shape: elongated with two mounting points.
- Housing material: gray cast iron.
- Bearing type: ball bearings with screw fixation.
- Lubrication opening: present.
- Self-alignment: enabled.
UCFL bearings are used in various mechanical systems where there is limited space for installation, such as conveyor belts, light industrial machines, ventilation devices, and agricultural equipment.
